Climatech <font size="1">68/78-80/92</font>
Package of accessories for Lift&Slide with excellent performances. Based on in-depth environmental study and lab tests, the new Climatech project attains standards which were once beyond the reach of Lift&Slide systems. Very high heat performance ratings thanks to a fiberglass threshold. The Lift&Slide is available with Uni-V, Easy and Climatech central points. By stipulating the Cascading contract, fitters will be able to use the performance data certified by AGB, attesting conformity with window/door CE mark.

Product features

Water tightness
Water tightness Up to 9A
Air permeability
Air permeability Up to 4
Wind loading resistance
Wind loading resistance Up to C2
Impact resistance
Impact resistance Up to 5
Noise abatement
Noise abatement Up to 43/41 dB - 41/39 dB
Heat transmittance
Heat transmittance Up to 1,8 W/m2K
Vertical application field
Vertical application field 800 ÷ 3000 on sliding sash
Horizontal application field
Horizontal application field 650 ÷ 3000 on sliding sash
Type
Type for wood

Certifications / Highlights

CE
CE
Cascading
Cascading
NEW FINISH FOR CLIMATECH THRESHOLD ANTHRACITE GREY

NEW FINISH FOR CLIMATECH THRESHOLD ANTHRACITE GREY

Typical of many building elements such as tinsmithery and aluminium coverings, the new finish is the perfect solution to follow the trend of architecture and windows and doors markets.

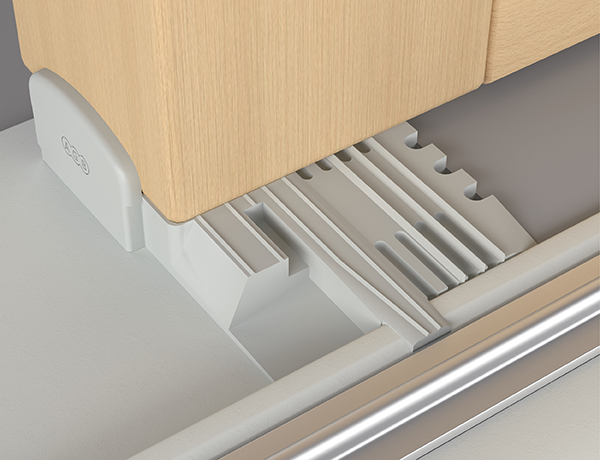

Uni-V central point

Uni-V central point

The Uni-V central point offers wide milling tollerances, compensates for the natural deformation of wood and removes the after-sales works on site linked to the Lift&Slide bad functioning. Thanks to this revolutionary central point, there is no contact between the sash and the frame. The result is a fluid and silent opening movement.
Easy central point

Easy central point

The Easy version, completely made of wood, offers a more appreciated solution from the aesthetic point of view, maintaining the area perfectly insulated.
Decompression chamber

Decompression chamber

This accessory allows to create a decompression chamber outside the side point, providing a barrier against water, air and low temperatures, without special milling cutters.
Heat-sealed gaskets

Heat-sealed gaskets

The gaskets, positioned on the perimeter of the moving sash, are a vitally important factor in raising the performance ratings of windows and doors. The outer gasket, with its special form, enables sealing of the sash with the threshold.
Climatech fiberglass-reinforced threshold

Climatech fiberglass-reinforced threshold

This fiberglass-reinforced composite-material threshold ensures optimal strength and excellent heat insulation. The finish ensures optimal scratch-resistance.
Pad of central point

Pad of central point

This is positioned between central profile and threshold. Thanks to its special shape, optimal water flow is enabled, as well as perfect connection with the profile itself. Furthermore, it contributes significantly to heat insulation of the central point.
Top sealing profile

Top sealing profile

This is an innovative insulation system. It consists in a profile that stays along the top rail of the sash and resting on the listel. The sash and frame are therefore sealed thanks to this profile, featuring closed cells foam rubber.
