Intermediate

Lift&Slide Wood

Lift&Slide Wood
Intermediate
Optimal results for Lift&Slide doors and windows featuring aluminium thresholds with thermal break, reduced top guide and central point with anti-burglar component which (thanks to simple but also important accessories) translates into optimal resistance classes for windows and doors. With its competitive prices and top performance ratings, this is the ideal solution for building projects involving large quantities of units.

Product features

Water tightness
Water tightness Up to 7A
Air permeability
Air permeability Up to 4
Wind loading resistance
Wind loading resistance Up to C2
Impact resistance
Impact resistance Up to 5
Noise abatement
Noise abatement Up to 43/40 dB
Heat transmittance
Heat transmittance Up to 1,9 W/m2K
Vertical application field
Vertical application field 800 ÷ 3000 on sliding sash
Horizontal application field
Horizontal application field 650 ÷ 3000 on sliding sash
Type
Type for wood

Certifications / Highlights

CE
CE
Cascading
Cascading
Central point

Central point

This is made up of an anti-burglar component which, thanks to its bulb gasket and brushes, ensures satisfactory insulation and effective protection against attempted burglary.
Easy central point

Easy central point

An effective choice of central point. The Easy version, completely made of wood, offers a more appreciated solution from the aesthetic point of view, moreover maintaining the area perfectly insulated.
Uni-V central point

Uni-V central point

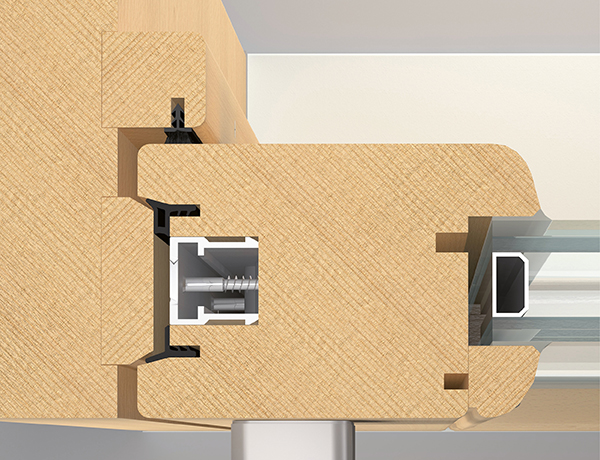

The Uni-V central point offers wide milling tollerances, compensates for the natural deformation of wood and removes the after-sales works on site linked to the Lift&Slide disease. Thanks to this revolutionary central point, there is no contact between the sash and the frame. The result is a fluid and silent opening movement.
Decompression chamber

Decompression chamber

This accessory is related to Climatech, Intermediate and Basic versions. This profile allows to create a decompression chamber outside the side point, providing a barrier against water, air and low temperatures, without special milling cutters.
Heat-sealed gaskets

Heat-sealed gaskets

The gaskets, positioned on the perimeter of the moving sash, are a vitally important factor in raising the performance ratings of windows and doors. The outer gasket, with its special form, enables sealing of the sash with the threshold.
Top point

Top point

This traditional coated sponge pad, combined with a reduced universal guide, ensures optimal resistance against atmospheric agents.
Top sealing profile

Top sealing profile

This is an innovative insulation system. It consists in a profile running along the top rail of the sash and resting on the listel. The sash and frame are therefore sealed thanks to this profile.
Central point pad

Central point pad

This rubber strip seals the central point with the threshold, thanks to its special form. It therefore provides an effective barrier against water infiltration.
Aluminium threshold with thermal break

Aluminium threshold with thermal break

This provides satisfactory heat insulation and also satisfactory water flow, due to the inclined plane on which the moving and fixed sashes rest.
