Artech Plana

Artech wood

  • Concealed hinge for tilt&turn systems
  • Ideal for flush systems
Artech wood
Downloads
Artech Plana

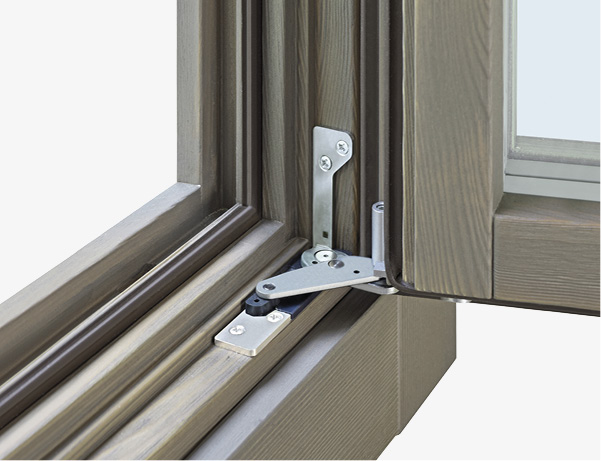

Artech Plana is the concealed hardware system for tilt&turn flush systems,  completely designed by AGB in Italy. Artech Plana has been designed to give a great sense of design and anti-burglar security to the window.

Product features

Opening
Opening 105°
Capacity
Capacity 150 kg
Type
Type for wood
Concealed hinge Plana

Concealed hinge Plana

150 kg capacity allow to realise balcony doors of big dimensions with insulated and anti-burglar glasses. Plana is the ideal ally for windows with great performances of thermal insulation and anti-burglar resistance.
Flush sash

Flush sash

Artech Plana achieves flush sash windows with a minimum gap between sash and frame. Creating the perfect solution for flush sash windows and wooden panelling.
Auto-jig

Auto-jig

The hinge is desogned and shaped to be applied flush to the frame, so the installation can be done both with the jig and the auto-jig.
Adjustment of the lower hinge

Adjustment of the lower hinge

It allows the lateral and vertical adjustment of the sash. The lower ring avoids the pin extraction.
Adjustment of the stay-arm, frame part

Adjustment of the stay-arm, frame part

It allows the sash lateral adjustment from -4 mm to +2 mm. Only two GRs to be coupled to four GRs of the body stay-arm.
Stay-arm adjustment

Stay-arm adjustment

Non-handed and universal for turn sashes and TBT. Thanks to the adjustable guide, it is possible to choose the tilt openings of 140 mm or 80 mm.
Are you interested to
buy this product? Contact us for more information
House R
Project
Design / Performance / Security House R
